Pulmonary Embolism

by Elif Dilek Cakal

Case Presentation

A 45-year-old female with no prior medical history presented to the emergency department (ED) with three days of constant shortness of breath. She was suffering from left-sided sharp chest pain, which is stronger during inhalation. She had felt breathless while she was climbing upstairs during the previous week. She had no cough or expectoration. She was a non-smoker; her only drug was daily oral contraceptive. Vitals at arrival were as follows: Blood Pressure: 116/72 mmHg, Pulse Rate: 102 beats per minute (bpm), Respiratory Rate: 18 breaths per minute, Body Temperature: 37°C (98.6°F), Oxygen Saturation: 95%. Physical examination revealed no abnormality except for the left-sided basilar crackles. Chest X-ray was unremarkable. The emergency physician (EP) proceeded to investigate differential diagnoses. Her Well’s Score for pulmonary embolism was 4.5 (moderate) because of increased heart rate and lack of alternative diagnosis. The laboratory results showed negative β-HCG, normal renal function test, platelet number and a D-dimer measurement of 751 ng/ml (cutoff = 550 ng/ml). EP explained these results to the patients and suggested a computed tomographic pulmonary angiography (CTPA). CTPA showed filling defects within the left pulmonary artery, left anterior and lateral segmental artery associated with pulmonary embolism. Enoxaparin, 1.0 mg/kg, twice a day (80 mg = 0.8 ml, each dose for approximately 80 kg patient), was started. Her Pulmonary Embolism Severity Index (PESI) was 65 (class I) and implied a very low risk. As a shared decision with the patient and respiratory physician, the patient was referred to the respiratory physician as an outpatient after discussion and confirmed understanding of discharge instructions.

Introduction

The incidence of pulmonary embolism (PE) is approximately 1.5 new cases per 1000 persons. Patients with chest pain, shortness of breath and syncope should have pulmonary embolism excluded. Atypical presentations include mental deterioration in patients with prior dementia. EP must maintain a high index of suspicion as the potential outcome of a misdiagnosis is catastrophic. The mortality of untreated PE is estimated to be 30% whereas the all-cause 30-day mortality of diagnosed PE is only 8%.

Critical Bedside and General Approach

First, the EP must determine whether the patient is stable or unstable. Instability and shock warrant stabilization in addition to simultaneous diagnostic and therapeutic effort. If the patient is hypoxic, administer oxygen. Severe hypoxemia or mental deterioration necessitate intubation. If the patient is hypotensive, administer only 500 mL IV bolus saline. Aggressive IV fluid may increase the right heart strain and shock. If hypotension persists, give IV vasopressors, particularly norepinephrine or epinephrine.

Obtain an ECG to exclude STEMI and dysrhythmia. Perform a thorough bedside ultrasound. EP can rapidly exclude pericardial tamponade, pneumothorax, and intraabdominal bleeding via bedside ultrasound. Right ventricular enlargement or the presence of deep venous thrombosis (DVT) gives hints of pulmonary embolism (please check RUSH Protocol chapter).

What is your diagnosis in US given below?

Answer

US apical view and parasternal short axis view. Enlarged RV is seen apical 4 chamber view of the heart and in PS short axis (on the right) D shape LV.



  • If the patient is stabilized, the patient should directly undergo CTPA.
  • If the patient remains unstable or CTPA is unavailable, bedside ultrasound is the only diagnostic tool.
  • If CTPA confirms or bedside ultrasound strongly suggests pulmonary embolism, thrombolysis is indicated.
  • If the patient is stable with high suspicion of PE, but the diagnostic measures are expected to delay, administering of one dose low molecular weight heparin (LMWH) is recommended.

Differential Diagnosis

Potentially life-threatening differential diagnoses of pulmonary embolism are summarized in Table 1.

Potentially Life-Threatening Differential Diagnoses Of Pulmonary Embolism

Potentially Life-Threatening CausesHistory and Physical examinationBed-side ActionsImagingLaboratoryComments/Pearls and Pitfalls
ACS – STEMI Typical chest painECGTroponinsCentral PE causes angina-like chest pain and cannot be excluded only based on the nature of pain.
ACS – NSTEMI Typical chest painECGTroponinsTroponins may be elevated in PE.
Cardiogenic Shock/Congestive Heart FailureHistory of CHFBed-side ultrasound
(e.g. RUSH protocol)
Pulmonary edema on chest X-rayBNP
Pro-BNP
BNP and pro-BNP may be elevated in PE.
Cardiac DysrhythmiasPersonal/Family history of cardiac dysrhythmias, new-onset “convulsions”ECG
PneumothoraxTrauma?Bed-side ultrasoundPneumothorax on chest X-ray
Cardiac TamponadeMalignancy?Bed-side ultrasoundMalignancy increases both PE and cardiac tamponade incidence.
PneumoniaCough with sputum, fever, immunosuppression Bed-side ultrasoundPneumonic infiltration on chest X-rayWBC
CRP
Procalcitonin
Esophageal RuptureChest X-ray
CT/CTPA
Pulmonary MalignancyHistoryChest X-ray
CT/CTPA
Malignancy increases cardiac tamponade incidence.
AsthmaHistory
Bronchospasm on examination
Aortic DissectionBed-side ultrasoundCT/CTPA
Pericarditis/MyocarditisHistory of flu-like symptoms ECG
Bed-side ultrasound
Troponins
The most helpful diagnostic ways to establish the diagnoses are in bold. Original by author.



Non-Life-Threatening Causes are Bronchitis, Chest wall pain/Costochondritis, Pleuritis/Pleurisy, GI Abnormalities (GERD, Peptic Ulcer, Gastritis), Panic Attack/Anxiety Disorder, Rib Fracture.

History and Physical Examination Hints

  • The character and severity of the clinical presentation may vary tremendously from being asymptomatic to sudden death. The patient’s prior condition, clot’s size, and localization affect presentation. Even highly qualified EPs may miss the diagnosis because of vague signs. Previously healthy young patients tend to be mildly symptomatic with normal vital signs. Prior cardiopulmonary disease and cognitive dysfunction generally obscure the diagnosis. Therefore, atypical presentations are frequent in elderly patients. Proximal clots cause dyspnea via ventilation-perfusion mismatch. Pneumonia-like presentation and pain due to pulmonary infarction are more often in distal clots. The presence or absence of sudden onset symptoms neither increase nor decrease the probability of PE. Fewer than half of patients describe sudden onset.
  • Most patients with PE complain of dyspnea (82-85%), chest pain (40-49%), pre-syncope or syncope (10-14%), and hemoptysis (2%). Other PE-related signs and symptoms include functional or mental deterioration, arterial hypotension, cough, flank pain, abdominal pain, dizziness, light-headedness, tachypnea (30-60%), fever, diaphoresis, and anxiety. DVT-related symptoms may accompany. Some cases are asymptomatic and diagnosed incidentally.
  • Shortness of breath, vague or apparent, is the most common symptom. A patient with PE typically presents with 2 to 3 days of new-onset shortness of breath that is not explained by a known medical condition, now worsened enough to seek care. Because the embolic burden is loading gradually, most patients describe dyspnea on exertion days to weeks before dyspnea at rest.
  • Contrary to common misbelief, PE may cause both pleuritic and angina-like chest pain. Distal emboli induce atypical, pleuritic, stabbing-like chest pain due to pleural irritation. Central emboli may present as typical angina-like chest pain, possibly associated with RV ischemia. Thus, exclusion solely based on the quality of chest pain is impossible.
  • The frequency of syncope and pre-syncope among the ED patients with confirmed PE remains highly variable in different studies (4-22%). On the other hand, only in a minor group of patients presented with pre-syncope and syncope, the final diagnosis is PE. Yet, patients with PE who present with syncope tend to have major PE.
  • Haemoptysis is not common but is more specific to PE.
  • Vital signs are variable. Most patients have relatively normal vitals. Some are in shock and shock is a predictor of bad outcome. Heart rate > 100 bpm and oxygen saturation <95% increase the probability. Fever does not exclude PE, though an oral temperature >39.2°C (102.5°F) greatly decreases the possibility. Mild or severe increase in respiratory rate may be present. Normalization of vital signs with treatment or time does not change the likelihood of PE.
  • No single examination sign confirms or excludes PE. DVT-related signs increase the possibility. Pulmonary infarction secondary to PE or other diagnoses may cause crackles. Bronchospasm primarily dictates other diagnoses. However, the EP must consider that underlying PE exacerbates Chronic Obstructive Pulmonary Disease (COPD). Treatment-resistant COPD exacerbations may imply PE.
  • The combination of history and physical examination is frequently insufficient to diagnose. Thus, the EP must investigate risk factors to determine the likelihood of PE. The risk factors in the emergency setting differ from the general population or longitudinal risk factors.

Selected Risk Factors of Pulmonary Embolism In The ED Setting

Indicators of PE in the ED SettingMay Be Less Significant in the ED Population
Age > 50
Recent Surgery
Recent Major Trauma
Immobilization
Estrogen
Prior VTE
Postpartum
Inherited Thrombophilia
Active cancer
Pregnancy
Smoking
Family History of VTE
Inactive cancer
Travel



Table 2 summarizes selected common risk factors in the ED setting. For a more detailed discussion, please refer to the relevant sections of “Emergency Evaluation For Pulmonary Embolism, Part 1: Clinical Factors That Increase Risk” at this link and “Clinical Features From the History and Physical Examination That Predict the Presence or Absence of Pulmonary Embolism in Symptomatic Emergency Department Patients: Results of a Prospective, Multicenter Study” at this link.

  • Up to 30% of adult patients are without risk factors at the time of the diagnosis.
  • Clinical prediction rules stratify patients according to their pretest probabilities.
    • Wells’ Criteria for PE – link
    • Revised Geneva Score (RGS) – link
  • Experienced physician’s gestalt and clinical prediction rules showed similar performance in some studies, but the use of clinical prediction rules are strongly recommended for inexperienced physicians.
  • Pulmonary Embolism Rule-Out Criteria (PERC) is recommended for the bedside exclusion of low-risk patients – link

Emergency Diagnostic Tests and Interpretation

  • Bedside ECG shows tachycardia and non-specific ST-T changes in most of the cases. Acute S1Q3T3 finding in the ECG is seen only increased right ventricle enlargement and pressure which seen massive emboli. These finding can also be seen in core pulmonale.

41.2 - ECG for suspected pulmonary embolus

  • Pulmonary embolism should come to mind in a large number of patients because of the changeable and vague nature of its presentation. Proper assessment of clinical probability, D-dimer testing and CTPA are cornerstones of management. Other diagnostic tools like lung scintigraphy, bedside echocardiography and compression venous ultrasonography of bilateral lower extremities may prove useful in special circumstances such as pregnancy, unavailability of CTPA, instability or shock.

What is your diagnosis in CT given below?

Answer

CT shows a “saddle embolus” at the bifurcation of the pulmonary artery and thrombus burden in the lobar branches of both main pulmonary arteries.



The high frequency of patients with symptoms implying PE results in the dilemma of underdiagnosing or overtesting for PE. Underdiagnosing PE increases mortality and morbidity. Overtesting raises emergency medicine crowding and potential complications due to chosen diagnostic modality. A true understanding and strict application of proven and reliable clinical rules and algorithms are recommended.

  • The first step is the evaluation of the patient’s stability. The diagnostic and therapeutic measures in stable and unstable patients are different. The presence of shock or hypotension immediately indicates high-risk PE while the absence of those implies non-high-risk PE. The proposed algorithms for both are as follows:
    • Non-high-risk PE: The clinical approach for stable patients is demonstrated at this link as a part of “Emergency Evaluation For Pulmonary Embolism, Part 2: Diagnostic Approach.
    • High-risk PE: The clinical approach for unstable patients is demonstrated at this link as part of 2014 ESC Guidelines on the diagnosis and management of acute pulmonary embolism.
  • Once PE is confirmed accordingly, prognostic assessment is the next step. Clinical parameters and right ventricular function via imaging and biomarkers help the EP to predict prognosis.
    • The mostly studied prognostic prediction rules are Pulmonary Embolism Severity Index (PESI) – link. and its simplified version (sPESI) – link.
    • Right ventricular dysfunction has been reported ≥ 25% of patients. It implies a low cardiac output and adverse outcome. Echocardiographic findings of right ventricular dysfunction include right ventricular dilatation and hypokinesis, septal flattening and paradoxical septal motion, diastolic left ventricular impairment. Other findings include direct visualization of pulmonary embolism, pulmonary arterial hypertension, right ventricular hypertrophy and patent foramen ovale. A normal right ventricular function does not exclude PE.
    • Elevated brain natriuretic peptide (BNP), N-terminal (NT)-proBNP, troponins, creatinine, and D-dimer predict higher mortality. Negative biomarkers and D-dimer indicates a good prognosis.
    • Patients are classified into four groups based on early mortality risk. Patients who are hypotensive or in shock are defined as high-risk regardless of other evaluations. Normotensive patients who are PESI class III-IV or sPESI class ≥ I are at intermediate risk. Intermediate risk group divides into intermediate-high risk and intermediate-low risk groups, according to RV function and cardiac biomarker values. Lastly, a PESI class I-II or sPESI class 0 normotensive patient is defined as a low-risk patient. The proposed risk stratification (link) and risk-adjusted management strategies in acute PE is demonstrated at this link as part of 2014 ESC Guidelines on the diagnosis and management of acute pulmonary embolism.

Emergency Treatment Options

Initial Stabilization

Stabilizing interventions, diagnostic and therapeutic effort must begin immediately and continue till admission for an unstable patient. Development of shock, hypotension or hypoxemia in the course of ED stay warrants prompt stabilization.

  • If the patient is hypoxemic
    • Administer oxygen
    • Intubate, if necessary. Beware of high intrathoracic pressure for it may worsen the right ventricular failure. Therefore; aim:
      • Low tidal volumes (about 6 mL/kg lean body weight)
      • limited positive end-expiratory pressure
      • to keep end-inspiratory plateau pressure < 30 cm H20

* Use non-invasive mechanical ventilation with caution.
* Mental deterioration and coma may dictate intubation.

  • If the patient is hypotensive
    • Give 500 mL normal saline IV bolus. Avoid excessive IV fluids for it may increase right ventricular strain.
    • If fluid bolus does not help, start vasopressors. Norepinephrine and epinephrine are preferred over dobutamine/dopamine, except for a selected group of patients with known congestive heart failure.
  • Confirm PE with whether CTPA or bedside ultrasound as the patient’s status permits. Prepare for thrombolytic treatment.

Medications

Parenteral anticoagulation for stable patients remains the mainstay of therapy in ED. Low-Molecular-Weight Heparins (LMWHs) and fondaparinux are preferred over unfractionated heparin (UFH) because of lower major bleeding and heparin-induced thrombocytopenia risk.

  • LMWHs
    • Enoxaparin: 1.0 mg/kg, every 12 hours, SC
    • Tinzaparin: 175 U/kg, once daily, SC
    • Dose reduction is required in renal impairment.
  • Fondaparinux
    • 7.5 mg, body weight 50-100 kg,
    • 5 mg, body weight <50 kg
    • 10 mg, if body weight >100 kg, once daily, SC)
    • Contraindicated, if creatinine clearance <30 mL/min
    • Dose reduction by 50%, creatinine clearance is 30-50 mL/min.
  • UFH
    • 80 Units/kg IV bolus, then 18 Units/kg/h continues IV infusion.
    • Recommended, if the patient is
      • a candidate for thrombolytic treatment
      • severely obese
    • Recommended, if creatinine clearance <30 mL/min
    • Advantages: The ease of monitoring and reversal of effects by protamine.

Thrombolytic treatment must be reserved for unstable patients. Streptokinase, urokinase and recombinant tissue plasminogen activator (rTPA) are approved thrombolytic agents for PE. As a general rule, LMWHs, fondaparinux and UFH infusion must be stopped during thrombolytic therapy. Currently, recombinant tissue plasminogen activator (rtPA) is the most widely used agent and its dose is 100 mg over 2 hours OR, 0.6 mg/kg over 15 minutes, the maximum dose of 50 mg.

Vitamin K antagonists (VKAs, e.g., warfarin) and new oral anticoagulants (NOACs, e.g., dabigatran, rivaroxaban) should be started in the inpatient setting after initial therapy.

Surgical embolectomy, percutaneous catheter-directed treatment, and venous filters are rarely applied after admission to ICU.

Pediatric, Geriatric, Pregnant Patient, and Other Considerations

Pediatric considerations

The pediatric pulmonary embolism is relatively rare, but widespread use of CTPA showed that it is more frequent than previously thought.
Up to 30% of adult patients have no identifiable risk factors. Unlike adults, 96-98% of pediatric patients have identifiable risk factors, 88% have two or more. Infants and neonates bear the highest risk. In all age groups, a central venous catheter is the most common risk factor. Other common risk factors include dehydration, septicemia, peripartum asphyxia in neonates. Malignancy, lupus erythematosus, renal disease, congenital thrombophilia, surgery and major trauma are common predisposing factors in older children. Overall, immobilization, hypercoagulability, central venous catheter, excess estrogen state, and concurrent deep venous thrombosis are associated with pediatric PE. Deep venous thrombosis in children is predominantly associated with upper extremity and central venous catheter rather than lower extremity as in adults.

Pleuritic chest pain (84%), hemoptysis and shortness of breath are the main symptoms. D-dimer and prediction rules are not studied in children. CTPA remains the primary diagnostic tool in the emergency setting. The segmental arteries are affected 52%. The main or central arteries are affected 6%. Children tend to compensate for relatively large clots well out of their cardiopulmonary reserve.

LMWH is the mainstay of the therapy. Hemodynamically unstable patients should receive thrombosis. The prognosis is generally good. Shock is the predictor of an adverse outcome.

  • Enoxaparin
    • <2 months: 1.5 mg/kg/dose SC, twice a day
    • >2 months: 1.0 mg/kg/dose SC, twice a day

Geriatric considerations

The management and treatment do not change in geriatric patients. However, the EP should consider a few issues. The incidence of PE increases with age. Atypical presentations are common; comorbid illnesses and dementia obscure the diagnosis. The treatment does not change, but complications of anticoagulation occur more frequently. The EP must adjust dose according to comorbid situations like renal dysfunction of cachexia.

Pregnant patient considerations

PE and pregnancy form an ominous couple for apparent reasons. Pregnant and postpartum women are susceptible to PE. Peak times are the third trimester and the first 4 weeks following the labor, particularly after cesarean section. Moreover, breathlessness is a common complaint during pregnancy. The potential harm to fetus and woman breast from ionizing radiation, the fear of missing a life-threatening diagnosis and the need for quick decisions harden the management of a pregnant woman with suspected PE. A clinical pathway is recommended at this link as a part of “Emergency Evaluation For Pulmonary Embolism, Part 2: Diagnostic Approach.

The first step is bilateral lower extremity venous ultrasound. If the ultrasound is positive, the treatment starts without further investigation. If the ultrasound is negative, the EP must assess the pretest probability (PTP). The trimester, physician’s gestalt or clinical prediction rules are available methods to assess PTP. Note that no prediction rule is validated in pregnant. In the non-high risk group, PERC negative patients are further stratified with D-dimer. If D-dimer is under cutoff values according to trimesters, PE can be excluded to a reasonable degree of medical certainty. High risk, PERC positive or D-dimer positive patients should undergo imaging. On the imaging branch, shared decision-making should be pursued between CTPA and ventilation-perfusion scan.
LMWH is safe during pregnancy [Pregnancy Category (PC) B] and lactation and so is standard treatment and is preferred over heparin (PC C). Fondaparinux (PC B) is not recommended due to lack of data. VKAs (PC X) and new oral coagulants are contraindicated in pregnancy. Pregnancy does not alter the dosage.

Disposition Decisions

Admission Criteria

  • All high-risk patients, including those in shock, who are hypotensive, post-CPR, intubated, or who have received thrombolytic treatment must be admitted to ICU.
  • Intermediate-high risk patients should be observed in monitored beds and possibly in ICU
  • Intermediate-low risk and low-risk patients should be admitted to the ward.

Discharge Criteria

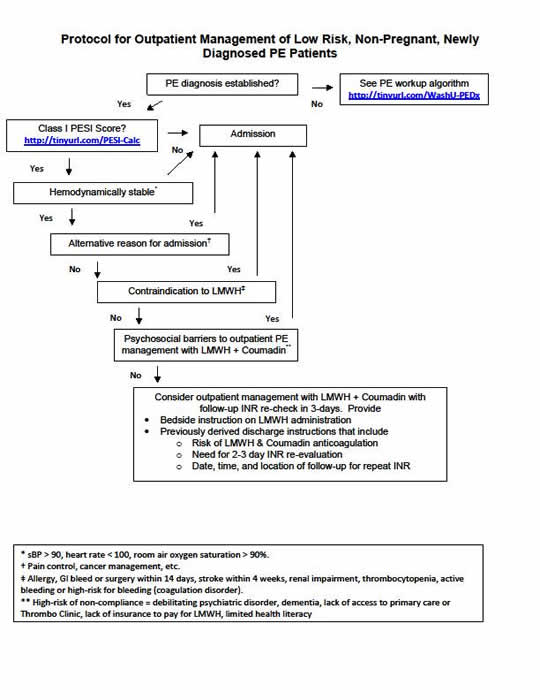

  • A very selected group of low-risk patients may be treated as outpatients. A proposed algorithm for outpatient management of PE is available at this link
  • Several discharge instructions are available online (I and II).

Referral

  • Patients must be referred to respiratory or internal medicine.

Pearls And Pitfalls

  • Use validated clinical prediction rules to estimate pretest probability in patients with suspected PE.
  • Do not proceed to D-dimer measurements or imaging studies in patients with a low PTP and negative Pulmonary Embolism Rule-Out Criteria.
  • A high sensitivity D-dimer is the initial test in patients with intermediate PTP or low PTP but a positive Pulmonary Embolism Rule-Out Criteria. Imaging studies are not the initial test in patients with low or intermediate PTP.
  • Use age-adjusted D-dimer thresholds in patients older than 50.
  • CTPA is the initial test in patients with high PTP. Ventilation-perfusion scans are alternative if CTPA is contraindicated or unavailable. D-dimer cannot exclude PE in patients with high PTP.
